Wifi/ 4G/ RS485 / LoRa Drive True Union PVC, UPVC, CPVC Electric Ball Valve
Wifi/ 4G/ RS485 / LoRa Drive True Union PVC, UPVC, CPVC Electric Ball Valve applied In Water Treatment, Paper & Pulp, Wastewater Treatment, etc. No MOQ required. Available In 2 Way And 3 Way Electric Ball Valve For Choice.
Quick Connection and Thread Connection Are Available.
Low Cost, High Flows, Anti-Corrosive & Food Safe.
Wifi/ 4G/ RS485 / LoRa Drive True Union PVC, UPVC, CPVC Electric Ball Valve applied In Water Treatment, Paper & Pulp, Wastewater Treatment, etc. No MOQ required. Available In 2 Way And 3 Way Electric Ball Valve For Choice.
Quick Connection and Thread Connection Are Available.
Low Cost, High Flows, Anti-Corrosive & Food Safe.
| Model | HK60-Q-P 2 Way Electric UPVC Ball Valve |
| Drive type | Wifi/ 4G/ RS485 / LoRa |
| Torque Range | 50Nm to 4000Nm |
| Size Range | 1/2in to 4in (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2.5″, 3″, 4″) |
| Pressure | 10bar |
| Temperature | -10℃ to 80℃ (14℉ to 176℉) |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Medium | Water, Wastewater, Seawater, Air and other medium |
Benefits Of Electric PVC Ball Valves:
If you are looking for a ball valve that can provide you with a cost-effective fluid control solution, then the electric PVC ball valve will be your first choice. The advantages of Electric PVC ball valves are low cost, lightweight, ultra low torque, preservative, easy operation, and convenient installation and disassembly. Plastic ball valves are suitable for industries at normal temperature and pressure, such as water treatment systems, RO equipment and so on. Moreover,supplementary platform embedded copper nut products convenient automatic actuator. By receiving or feeding back signals from the electric actuator, you can remotely control the valve opening or closing, helping you improve production efficiency.

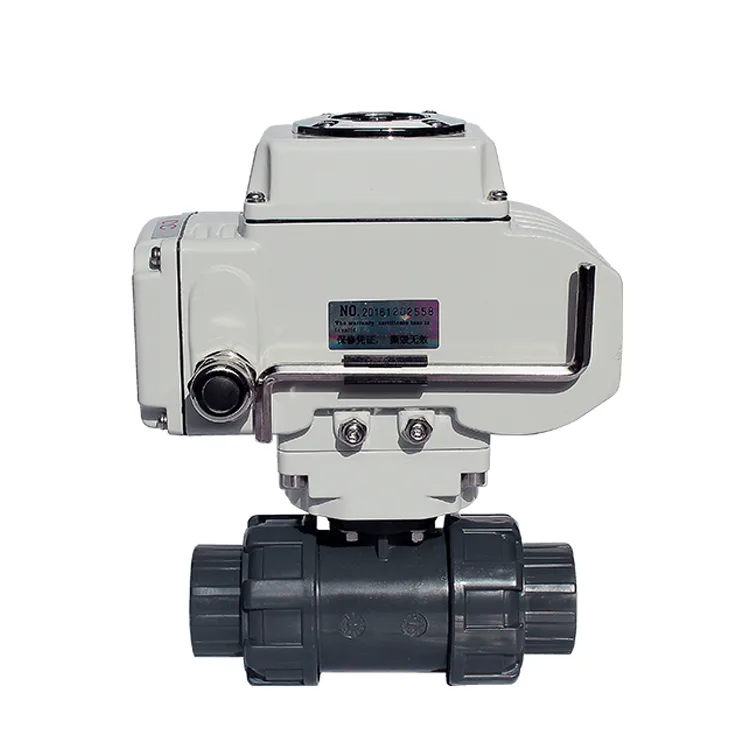

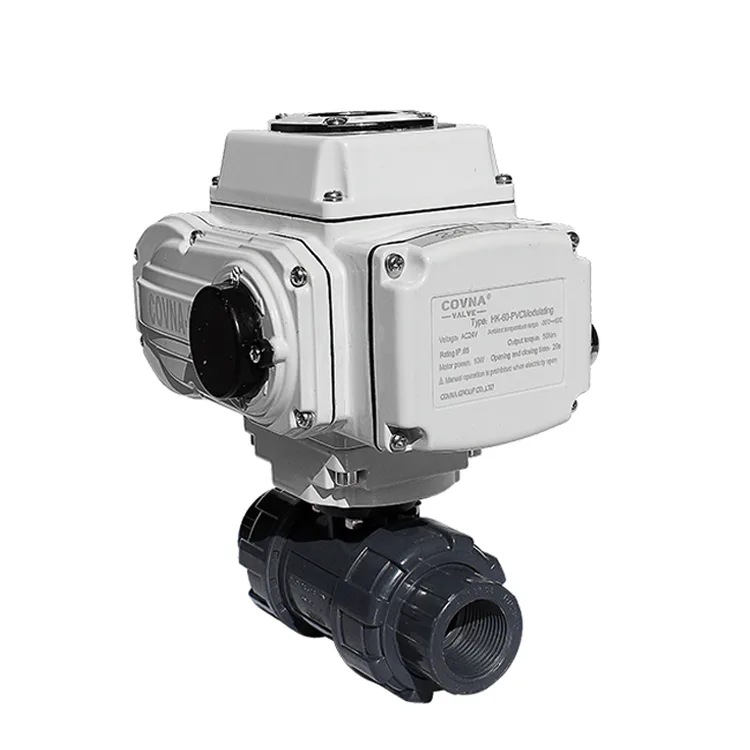

COVNA HK60-Q-P 2 Way True Union Electric UPVC Ball Valve
● Made by UPVC material with features of low cost, lightweight, anti-corrosive & food safe
● 3 options valve actuator for choice to help your automation easier and meet your actuation needs. Including on/off type,modulating type, intelligent type, explosion-proof type, IP68 type and auto return type valve actuators.
● Manual override is available. It could allow you to open or close the valve manually and keep your project safe when the power off.
● Also available in PPH, CPVC and PVDF material for you.
● 2-way ball valve and 3-way ball valve are available.
● Also available in CPVC, PVDF and PPH material for you:
Technical Parameters of Valve Actuator :
| On/Off Type | 90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA |
| Modulating Type | Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm. |
| Intelligent Type | Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply,signal control and manual override. High torque up to 4000Nm. |
| Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized |
| Protection Class | IP65; Explosion Proof Construction Are Available: EX d II BT4 |

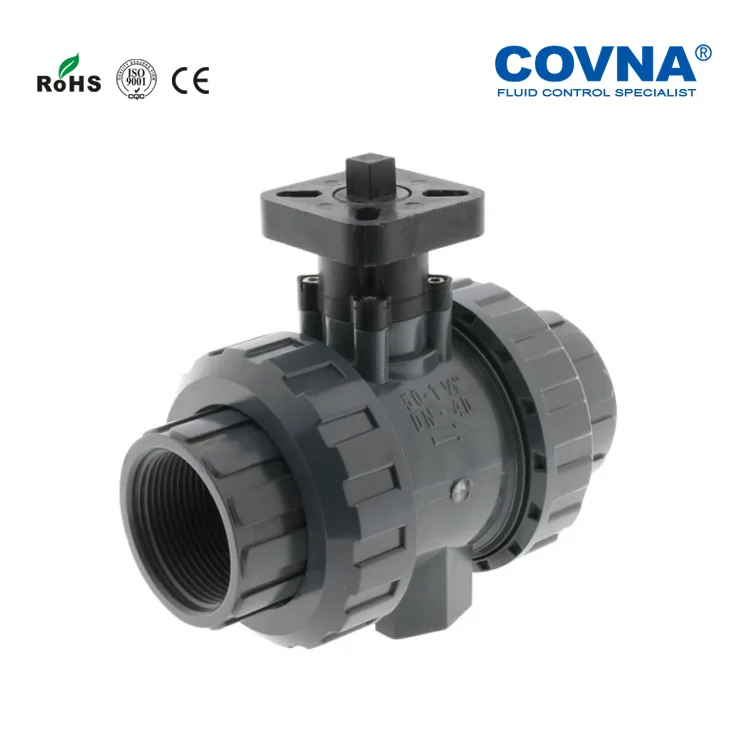

Technical Parameters of Valve Body:
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
Technical Parameter of Valve Body:
| Nominal Size | DN15-DN200 | Body Material | PVC, UPV, CPVC, PVDF and PPH |
| End Connection | True Union, Double Union Thread | Structure | T Port / L Port |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Voltage Tolerance | ±10% |
| Suitable Media | Corrosive media, Water, Air, etc | Temperature Of Media | -5~80℃ (23℉~176℉) |
| Design standard | ISO, DIN, IDF, SMS, 3A | Orifice(mm) | 15, 20, 25, 32, 40, 50, 65, 80, 100 |
| Model | HK60-Q-P | Voltage | 24V/12V DC; 110V/220V AC |
| MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
| Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
| Port Size | DN08~DN100 | End Connection | True union |
| Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
| Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
| Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
| Sealing Material | EODM | Warranty | 1 Year (12 Months) |
